PHOTO CITY MUSIC HALL
TECHNICAL SPECIFICATIONS
LOCATION (downtown)
Photo City Music Hall
543 Atlantic Avenue
Rochester NY 14609
United States
585-451-0047
www.photocitymusichall.com
CAPACITY
500
STAGE
20’ X 13’
Direct backstage to stage private access
LOADING DOCK
One bay, direct loading to stage
DRESSING ROOM
One dressing room (6 - 12 persons)
SOUND
Mixer Behringer X32
Midas DL32 Stage Box
2 Danely SH96 Tops
4 X QSC KW153 3 Way Loudspeakers
4 X QSC 18” KW181 Subs
2 X QSC K12’s 2 Way Loudspeakers
10 X QSC Dual 18’ GP218 Subs
10 X Ashley KLR3200 Amp
2 X Ashley KLR2300 Amp
MONITORS
2 X Turbo Sound Tops x12s
4 X QSC K10’s 2 Way Loudspeakers
STAGE GEAR
6 Shure SM58 mic
2 Shure SM57 mic
3 EV N/D478 mic
1 Shure Beta 91 mic
1 AT 4041 mic
2 Senheiser E609
3 Senheiser E604 clip on mic
1 Shure Beta 91A mic
20 25ft XLR cable
10 50ft XLR cable
6 10ft XLR cable
6 3ft XLR cable
2 30ft XLR cable
15 1/4X1/4 patch cable
3 whirlwind connect DB2 DI boxes
4 whirlwind IMP2 DI boxes
LIGHTING
6 x SHEHDS 300W LED Moving Head with LED Ring Frost & Rainbow Wheel
4 x Unity Raw 3 laser projectors
5 x Laser aurora quad series 4C
4 x chauvet intimidator spot duo
2 x adj sweeper beam quad led
2 x chauvet wave irc
6 x chauvet wave 360 irc
1 x chauvet hurricane 4d
5 x venue par 64
4 x chauvet itimidator 260 spot movers
1 x ADJ my DMX Dongle
4 x ADJ Colorsource Par spots
10 x ADJ SP Hex par can
Martin M-Touch Console
Martin M-Play Wing
Onyx Lighting Program
VISUALS
BenQ HT2150ST 1080P Short Throw Projector
200 inch Screen
6 x 42” HD televisions
Resolume visual software

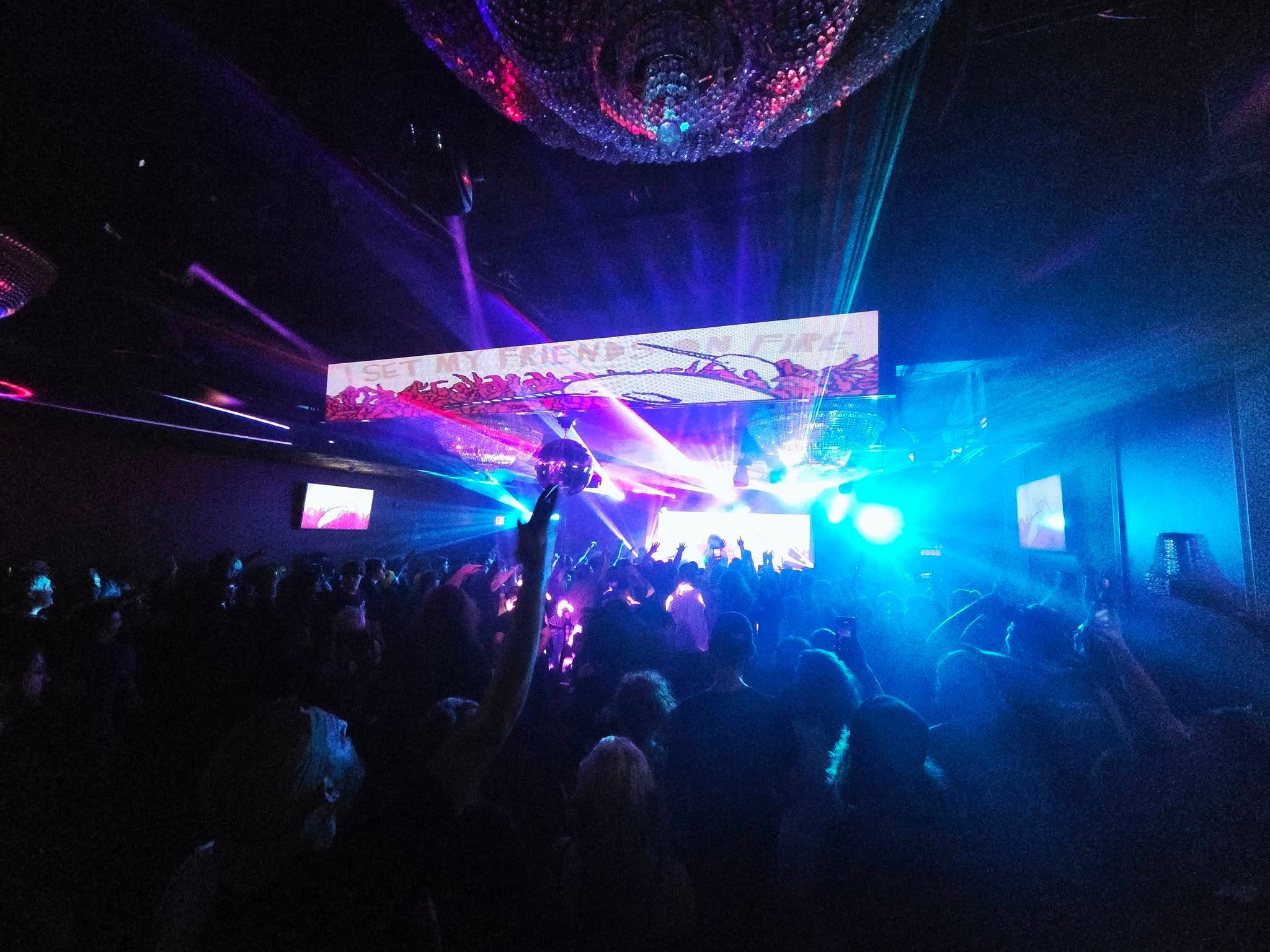

LED Walls
VS2 2.9mm LED Panel - 24
VS Rigging Bar - 5
VS Case - 3
Data Link - 20
Power Link - 17
Edison to Powercon - 4
Spanset - 3
Shackle - 3
Clamp with Eye Hook - 5
5' Black Truss - 2
NovaStar VS400 - 1
AV6 - 18
AV6 Rigging Bar - 10
Data link - 17
Power Link - 15
Edison to Powercon - 4
Spanset - 10
Shackle - 10
TECH EQUIPMENT
1 HP Elite Book 27
1 Epson Projector
1 E Machines E181H monitor
1 Dell p2318HT touchscreen monitor
1 IPAD
1 Apple Air Router
1 Macbook Pro
1 IBM Think pad laptop Tech Equip
RECORDING
Mutil-track audio and video available upon request
BACKLINE
2 x Pioneer CDJ 3000’s
2 x Pioneer CDJ 2000’s
1 x Nexus2 900
Local rentals available
LOCAL LOGISTICS
Assistance with all local logistics is our pleasure!
*We are happy to upgrade and / or bring in additional equipment by request*
